Tevo Tarantula Power Supply Wiring Overview
Wiring the power supply of your Tevo Tarantula 3D printer might seem daunting, but with this guide, you’ll be able to do it safely and efficiently. This comprehensive guide will walk you through every step, from understanding the components to troubleshooting common issues. Following these instructions carefully will ensure your printer receives the correct power and operates reliably. Remember to always prioritize safety when working with electricity and to double-check all connections before powering on your printer. This guide assumes a basic understanding of electrical components, but even beginners can successfully complete this task with patience and attention to detail. Proper wiring is crucial for the performance and longevity of your 3D printer, so let’s get started.
Understanding Power Supply Components
Before you start wiring, it’s essential to understand the power supply components. The power supply unit (PSU) typically has two main sections: the AC input and the DC output. The AC input is where you connect the power cord, which receives electricity from your wall outlet (110V or 220V). The DC output provides power to the various components of your 3D printer, such as the mainboard, heated bed, and motors. The PSU usually includes a voltage selector switch (110V/220V), fuses for safety, and terminals for connecting wires. Familiarizing yourself with these parts will make the wiring process much smoother.
AC Input Wiring
The AC input wiring involves connecting the power cord to the PSU. This part requires careful attention to ensure safety and proper operation. Incorrect wiring can lead to electrical hazards or damage to your printer. Always make sure the power is disconnected from the wall before working on the AC input. Use the correct gauge wire for the power cord to handle the current requirements of your printer. Typically, a standard power cord suitable for the voltage of your wall outlet will suffice.
Choosing the Right AC Cable
Selecting the correct AC cable is crucial for safety. Ensure the cable is rated for the voltage and current your printer requires. Check the specifications of your Tevo Tarantula’s power supply for the correct amperage. The cable should also have a suitable connector that fits your wall outlet. It’s advisable to use a cable that is in good condition and free from any cuts or damage. Using an inappropriate cable can lead to overheating and potential fire hazards, always verify the cable’s specifications before using it with your printer.

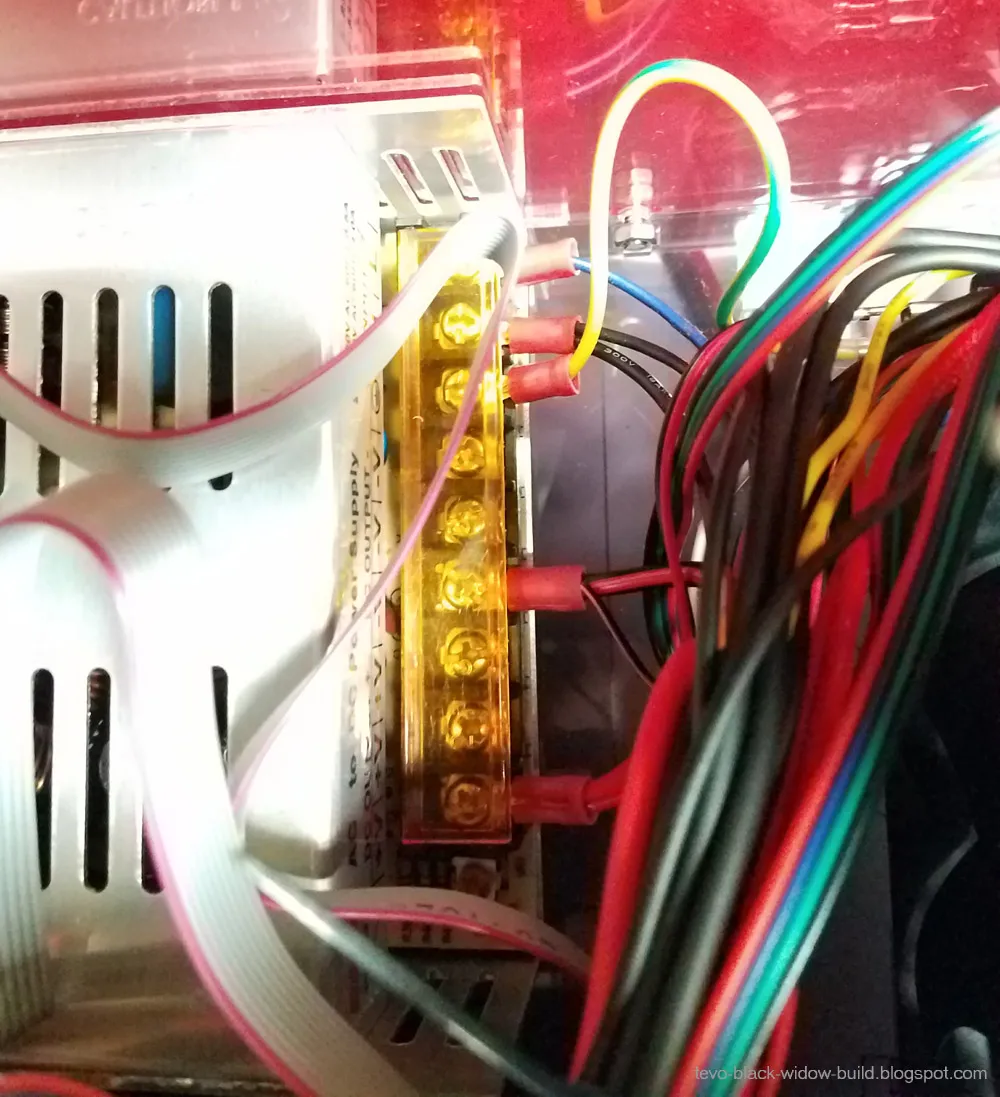

Wiring the AC Input
When wiring the AC input, identify the terminals for the live (hot), neutral, and ground wires. Strip the insulation from the wires of your AC power cord to expose the conductors. Connect the wires to the corresponding terminals on the PSU, usually marked with L (Live), N (Neutral), and a ground symbol (earth). Ensure the connections are secure and tight to prevent any loose contacts. Once the wires are securely connected, double-check all connections before proceeding.

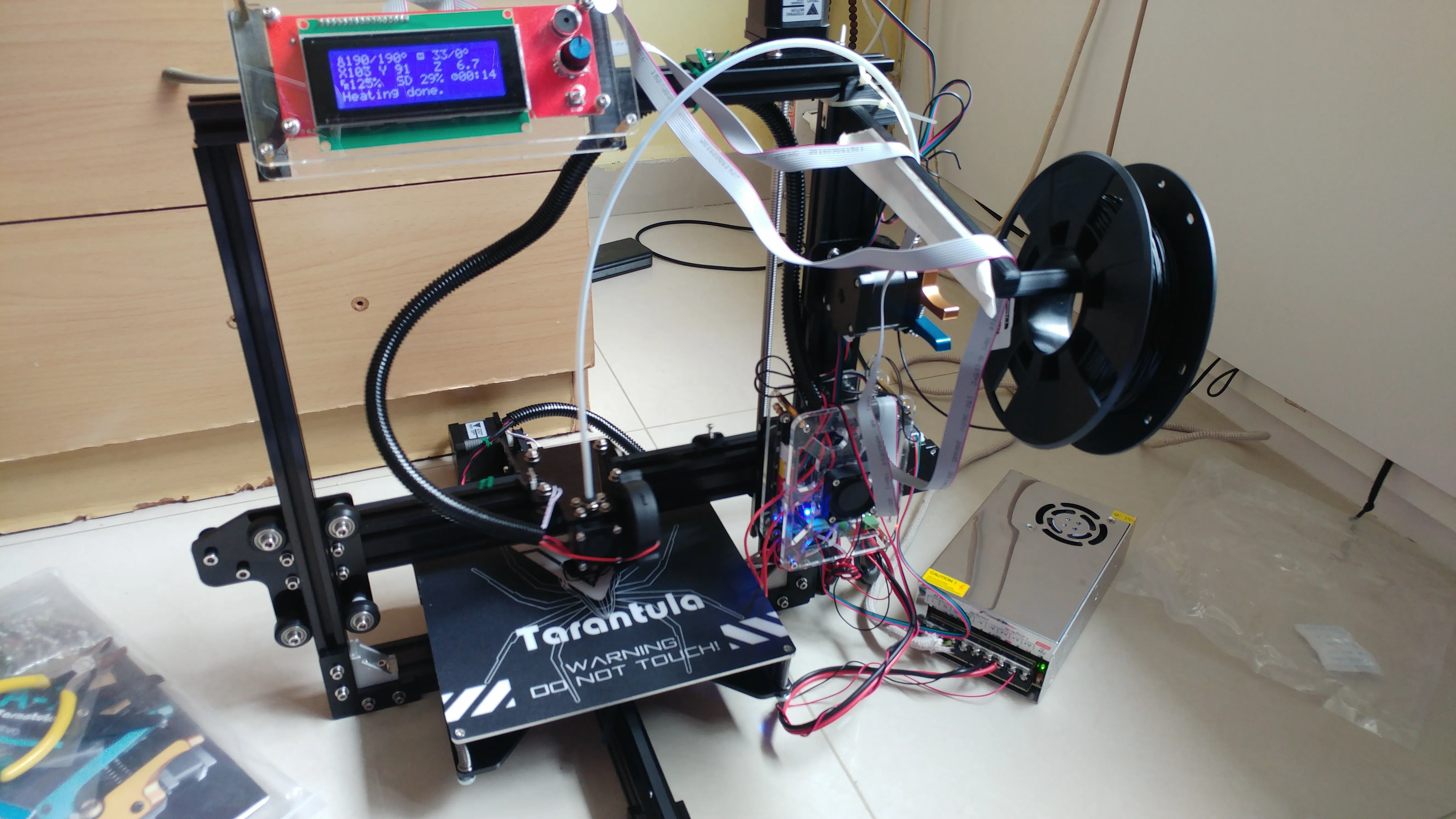

DC Output Wiring
The DC output wiring connects the power supply to your 3D printer’s components. This involves connecting wires to the mainboard and the heated bed. It’s essential to use the correct gauge wire for these connections to handle the current demands of the components. Incorrect wiring can lead to voltage drops, performance issues, or even damage to the components. Always refer to the Tevo Tarantula’s manual or wiring diagrams for accurate connections. Ensure all connections are tight and secure to prevent any electrical issues.

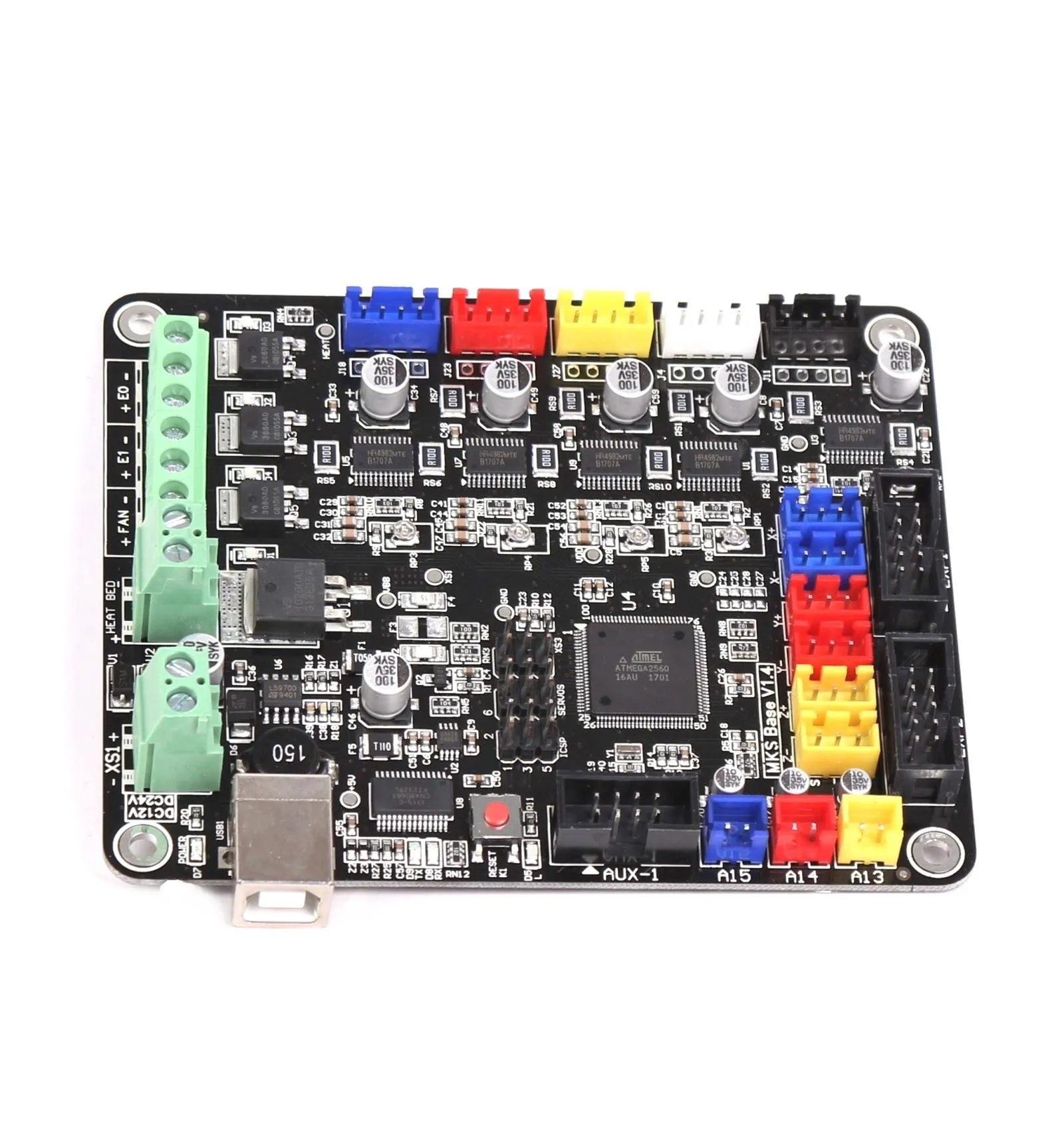

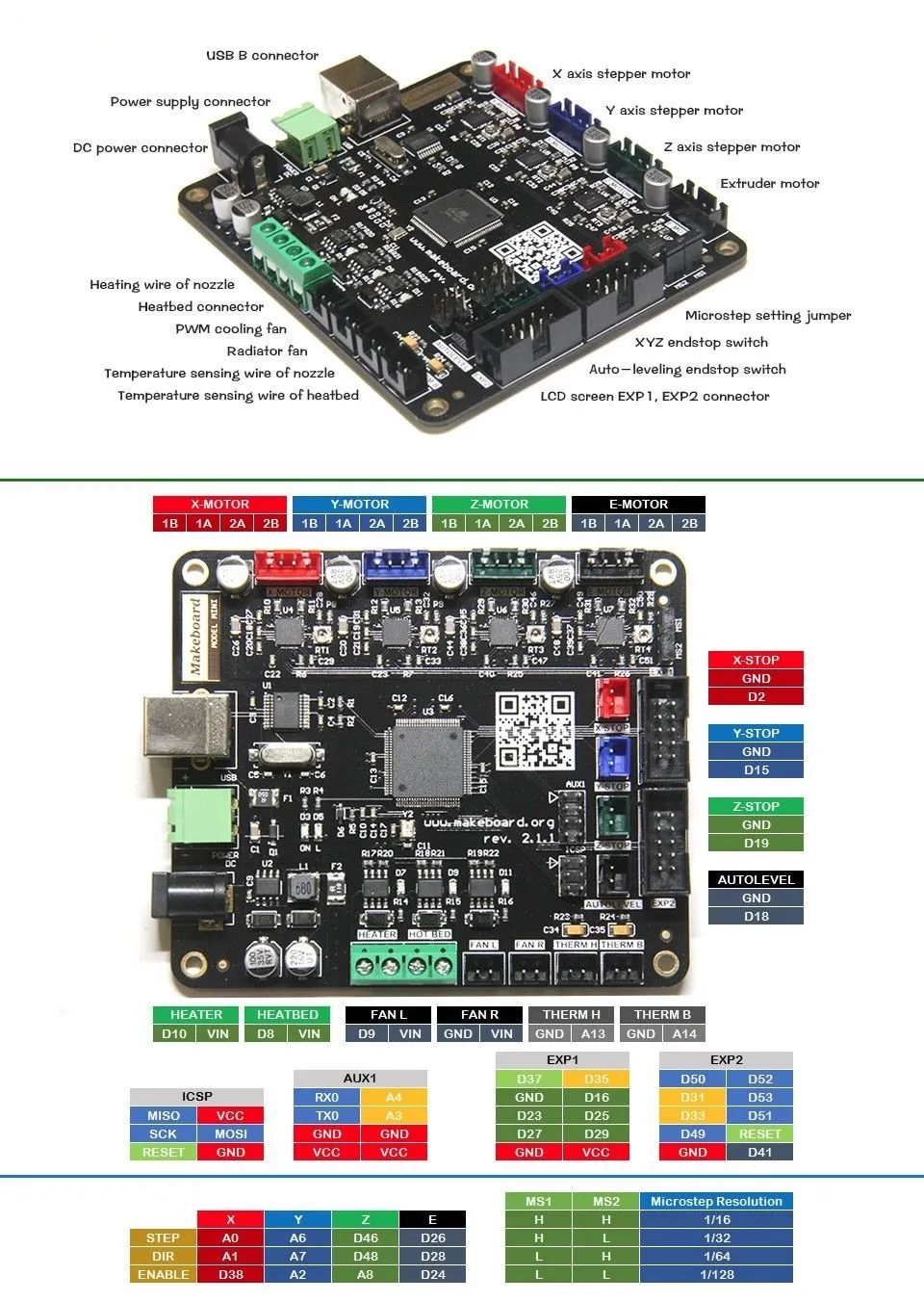

Connecting to the Mainboard
The mainboard requires a DC power connection, usually at a specific voltage (e.g., 12V or 24V). Identify the terminals on the power supply that correspond to the voltage your mainboard requires. Strip the insulation from the wires and connect them to the mainboard’s power input terminals, observing the polarity (+ and -). Secure the connections tightly. Double-check the wiring against your Tevo Tarantula’s manual to confirm the correct polarity and voltage. Incorrect connections can damage the mainboard and other components.
Connecting to the Heated Bed
The heated bed also requires a DC power connection, usually at the same voltage as the mainboard. Locate the heated bed power terminals on the power supply. Strip the insulation and connect the wires to the heated bed’s power input terminals, again observing the polarity. Use the appropriate gauge wire for the heated bed, as it draws a significant amount of current. Secure the connections. Verifying these connections carefully is important to ensure the heated bed functions correctly and safely. The heated bed draws a substantial amount of current, so ensure all connections are robust and the wiring is rated appropriately to prevent overheating or other electrical problems.
Safety Precautions
Safety is paramount when working with electricity. Always disconnect the power supply from the wall before performing any wiring tasks. Wear appropriate safety gear, such as insulated gloves, to protect yourself from electric shock. Work in a well-lit area and use the right tools. If you’re unsure about any step, consult a qualified electrician. Never bypass safety features like fuses. Taking these precautions can prevent electrical shocks and ensure the safety of both you and your printer.
Working with Electricity
Electricity can be dangerous, so always treat it with respect. Before starting any wiring, make sure you understand the basic principles of electrical safety. Never work on a power supply or any electrical components if you are wet or standing in a damp environment. Keep metallic objects away from exposed wires to avoid accidental shorts. If you accidentally touch a live wire, do not panic; try to break contact immediately. The safety of you should always be the most important consideration.
Proper Tools and Techniques
Using the correct tools and techniques is essential for safe and effective wiring. You’ll need a set of screwdrivers (both flathead and Phillips head), wire strippers, and possibly a multimeter. Ensure your tools are in good working condition. Strip the insulation from the wires carefully without damaging the conductors. Make sure the connections are secure. If using crimp connectors, use the correct crimping tool. Following the proper techniques can significantly reduce the risk of electrical problems and ensure the longevity of your 3D printer.
Troubleshooting Common Issues
Even with careful wiring, you may encounter issues. This section addresses some common problems and how to resolve them. Troubleshooting helps you identify and fix problems quickly, minimizing downtime and ensuring your printer functions correctly. Keep in mind that electrical issues can be complex, so patience and a systematic approach are essential.
Power Supply Not Turning On
If your power supply doesn’t turn on, start by checking the AC input. Make sure the power cord is properly connected to both the PSU and the wall outlet. Ensure the wall outlet is providing power. Check the voltage selector switch to make sure it’s set to the correct voltage (110V or 220V) for your region. If these are correct, the problem might be inside the PSU. In this case, take it to a professional.
Check the Fuses
Fuses are designed to protect the power supply from overcurrent. If your power supply doesn’t turn on, the fuse may have blown. Locate the fuse, usually near the AC input, and inspect it. Replace the fuse with a new one of the correct amperage. If the new fuse blows immediately, there’s likely a deeper issue that needs professional attention. Never replace a fuse with one of a higher amperage, as this can lead to more severe damage.
Check the Voltage Selector Switch
The voltage selector switch is critical, as it determines whether the power supply is configured for 110V or 220V input. Ensure the switch is set correctly for the voltage of your wall outlet. Incorrect settings can prevent the power supply from turning on or can damage the unit. If the switch is set to the wrong voltage, switch it to the correct setting. Make sure the power is off when you change the switch.
Output Voltage Problems
If the power supply turns on but the output voltage is incorrect, use a multimeter to check the DC voltage at the output terminals. The voltage should match the specifications for your mainboard and heated bed (e.g., 12V or 24V). If the voltage is too high or too low, there could be a problem with the PSU or the wiring. Check all wire connections. If the connections are secure and the voltage is still incorrect, the power supply may be faulty and should be replaced.
Overheating Issues
Overheating can be a sign of a problem with your power supply. Check for any blockages that might restrict airflow. Ensure the fan on the power supply is working correctly. Check all wire connections for loose or inadequate connections, as they can cause heat. If your power supply is overheating, switch off the printer immediately, disconnect the power, and check for any shorts or excessive current draw. If these checks don’t resolve the issue, the power supply may need to be replaced. Overheating can lead to damage to your printer.

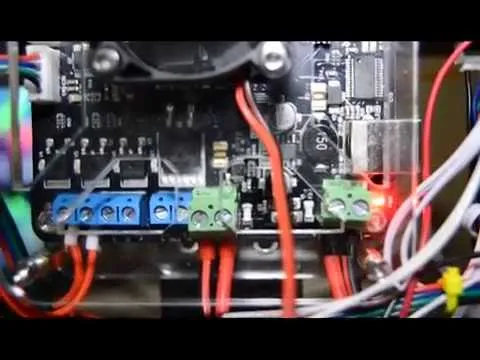

Final Checks and Testing
Before powering on your 3D printer, perform a final series of checks. Double-check all wire connections for secure fitting, making sure there are no loose or exposed wires. Ensure that all screws are tightened and everything is properly connected. Test your printer by powering it on and checking if all the components are functioning correctly. It is very important to test it on a desk, not your bed, so that you can inspect it properly. After completing these final checks, you can confidently start printing, knowing your Tevo Tarantula is safely powered.
